Weak Airflow From a Mitsubishi System in Woodland Hills
Cut to it: Weak airflow from a Mitsubishi in Woodland Hills usually means a dirty filter, a fouled blower, or undersized ducts choking a ranch system. Woodland Hills Mitsubishi HVAC checks the coil, blower, and duct static pressure across 91367 and Vista de Oro, then quotes the $89 to $6,000 fix; call (213) 277-6575 or book online.
The rundown
- Most common cause on a head: dirty filter and fouled blower wheel or coil.
- Ducted systems add ECM blower faults and undersized or leaky ductwork.
- Severe airflow restriction can lead to a frozen coil and P6 protection.
- Coil and filter cleaning: $89 - $450.
- ECM blower motor or module replacement: $450 - $2,300.
- Duct sealing or replacement: $1,900 - $6,000 depending on scope.
- In Zone 9, Title-24 can require HERS-verified duct sealing whenever ducts are altered.
- Service area 91364, 91367, 91371; independent diagnosis.
What chokes airflow on a Mitsubishi system?
Start with the simple and work toward the expensive. On a ductless head, the filters and the blower wheel collect dust through a long cooling season, and a fully loaded filter alone can cut output noticeably. Behind the filter, the indoor coil fouls and the squirrel-cage blower wheel cakes with grime, both of which strangle airflow. If cleaning those does not restore it, the indoor fan motor may be failing. On a ducted SVZ or MVZ system, a variable-speed ECM blower module or motor can weaken or quit, and the ductwork itself - especially original post-war ranch ducting - may simply be too small or too leaky to deliver the air the equipment is trying to push.
| What you notice | Likely cause / first check | Cost lane |
|---|---|---|
| Head output faded over the season | Dirty filter, fouled coil and blower wheel | $89 - $450 |
| Ducted system weak at every register | ECM blower motor or module | $450 - $2,300 |
| Some rooms fine, far rooms starved | Undersized or leaky ductwork | $1,900 - $6,000 |
| Weak air plus ice on the coil | Airflow restriction freezing the coil | $89 - $450 |
Why is this worse in Woodland Hills homes?
Two local factors stack up. First, the cooling season here is long and brutal - with the Santa Monica Mountains trapping heat and 60-plus days a year over 90 F, filters and coils load up faster than in milder parts of the basin. Second, much of the housing is mid-century ranch built before high-capacity systems were common, so the original ductwork was never sized for the airflow a modern system wants. When a homeowner upgrades the equipment but leaves the ducts, the returns become the bottleneck and the new system feels weak. We measure static pressure to tell equipment problems from duct problems instead of guessing.
How do we diagnose it, step by step?

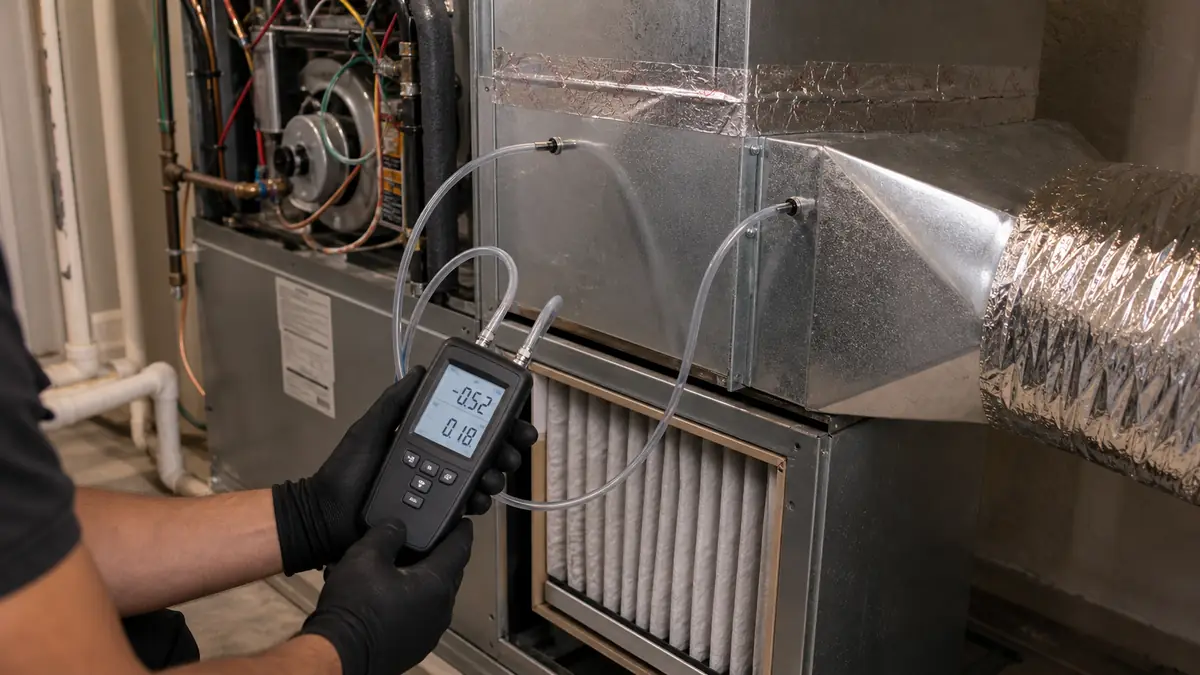

We move through it in a set sequence so the verdict rests on readings, not hunches. First we pull and inspect the filter and look at the indoor coil face and blower wheel through the head - a wheel caked with grime can lose a large share of its output. Next, on a ducted SVZ or MVZ system, we put a manometer on the return and supply to read total external static pressure; a reading well above the air handler's rated maximum points at duct restriction, not the equipment. We check the ECM blower's commanded versus actual speed and listen for it ramping. We read any stored code - severe restriction often shows up as P6 (freezing/overheating protection) once the starved coil begins to ice, and a failing indoor thermistor can log P1 or P2 and skew fan behavior. Only after those readings do we separate a cleaning job from a blower-motor job from a genuine duct-design limit.
Safe homeowner checks versus a pro call
You can safely do the cheap things with the system off: replace or wash the filter, make sure no furniture or drapes block the return and supply, and confirm every register is open. If new airflow returns after a clean filter, you may be done. What needs a tech: pulling and washing the indoor coil and blower wheel, measuring static pressure, testing an ECM module, and any duct sealing or resizing. A coil and filter cleaning runs $89 to $450, an ECM blower motor or module $450 to $2,300, and duct sealing or replacement $1,900 to $6,000 depending on scope. Across Climate Zone 9, sizable duct alterations generally bring HERS field verification, which we fold into the quote.
What is the fix, and does it need duct work?
If it is filters, coil, and blower, a thorough cleaning restores airflow and a maintenance plan keeps it there. If the ECM blower has failed, we replace the motor or module. If the ducts are the genuine limit, the straight answer is sealing and resizing - and across Climate Zone 9, sizable duct alterations generally bring HERS field verification, which we account for. On the steep lots south of Ventura Boulevard, weak airflow has its own profile; see the South of the Boulevard hillsides airflow page. If the coil has already iced, start at frozen evaporator coil.
Common questions
Why is my Mitsubishi head barely blowing air?
On a ductless head the usual culprit is a dirty filter or a fouled blower wheel and coil, which is easy to underestimate after a long Woodland Hills cooling season. If those are clean, suspect a failing fan motor or the early stage of a frozen coil. On a ducted system, add undersized or leaky ductwork to the list.
Is weak airflow the same as weak cooling?
Not always, but they overlap. Weak airflow is a quantity problem - not enough air is moving. Weak cooling can be airflow or refrigerant. If the air that does come out is cold but there is little of it, look at airflow first; if there is plenty of air but it is not cold, look at refrigerant and the compressor.
Can undersized ducts cause this in an older home?
Yes, and around Woodland Hills it happens a lot. Post-war ranch ducting was frequently sized for a smaller, weaker system, so bolt on a modern air handler and the returns choke while the registers feel starved. The real fix is sometimes sealing and resizing the ducts - work that Title-24 may pair with HERS verification.
What does fixing weak airflow cost?
A coil and filter cleaning runs $89 to $450. A failed ECM blower motor or module on a ducted air handler runs $450 to $2,300. Duct sealing or replacement is a larger project, typically $1,900 to $6,000 depending on scope. We diagnose which one you actually have before quoting.
