Mitsubishi Floor-Mount Mini-Splits in Woodland Hills
Cut to it: Woodland Hills Mitsubishi HVAC installs and services Mitsubishi MFZ floor-mount mini-splits across Woodland Hills 91364 and Carlton Terrace. Low-wall MFZ-KJ consoles fit ranch rooms with vaulted ceilings or full-height glass where a wall head will not work, so call (213) 277-6575 or book online.
The rundown
- MFZ-KJ09NA, MFZ-KJ12NA, and MFZ-KJ18NA low-wall floor consoles.
- Mounts at floor level - ideal under picture windows and vaulted-ceiling rooms.
- Strong electric replacement for old baseboard heaters; warms evenly from low in the room.
- Runs single-zone on a MUZ condenser or as a zone on MXZ / MXZ-SM multi-zone.
- Multi-directional vanes and quiet operation suit bedrooms and living spaces.
- Single-zone install lands in the $3,500 - $8,000 lane.
- Service area 91364, 91367, 91371; filters want frequent cleaning at floor level.
- Independent; in-warranty parts referred to authorized service first.
Why choose a floor console in a Woodland Hills home?

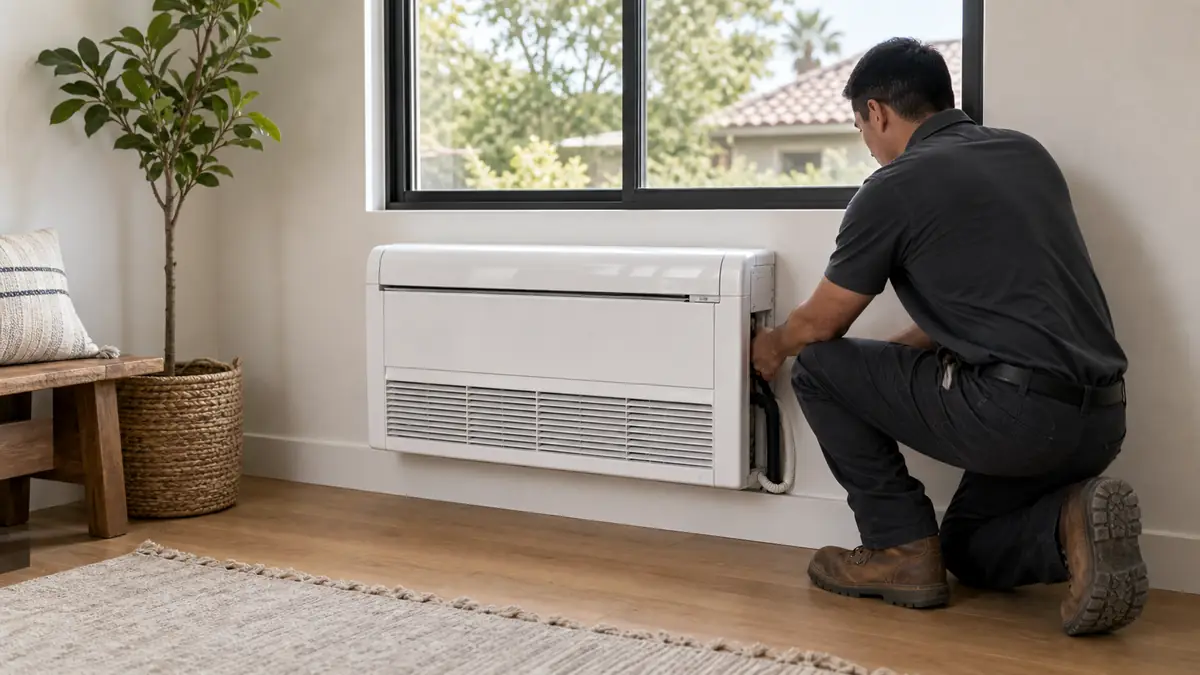

Wall heads are the default Mitsubishi solution, but they assume you have clear, high wall space to give up. Many Woodland Hills rooms do not. A mid-century living room with clerestory windows and a low beam ceiling, a primary suite with a wall of glass facing the hills, or a remodeled south-of-the-Boulevard space with cabinetry running floor to ceiling - in all of those, a high wall head is either impossible or an eyesore. The MFZ-KJ sits low against the wall like a radiator, slipping under windows and into spots a wall head cannot go.
There is a comfort argument too. Warm air rises, so a heat source mounted at floor level heats a room more evenly than one blowing from up near the ceiling. For homes converting off old electric baseboard or a tired furnace, the MFZ-KJ on a Hyper-Heat condenser is a clean, quiet upgrade that covers both the long cooling season and the occasional cold morning.
How does a floor unit compare to the alternatives?
| Room constraint | Best indoor unit | Why |
|---|---|---|
| Low ceiling, glass walls, cabinetry | MFZ-KJ floor console | Mounts low, no high wall space needed |
| Standard wall space available | MSZ wall head | Highest efficiency, lowest cost per zone |
| Finished ceiling, want it hidden | MLZ-KP 1-way cassette | EZ FIT recessed between joists |
| Existing ducts to reuse | SVZ/MVZ ducted handler | Conventional registers, concealed unit |
What are the MFZ floor-mount models?
The floor-console line is short and sized by room load. All three are low-wall MFZ-KJ consoles that run on a single-zone MUZ condenser or as one zone on an MXZ / MXZ-SM multi-zone outdoor unit.
- MFZ-KJ09NA: the 9,000 BTU/h console for a bedroom, study, or small living space - the most common size in a mid-century Woodland Hills room.
- MFZ-KJ12NA: 12,000 BTU/h for a larger primary suite or a moderate open living area with glass walls.
- MFZ-KJ18NA: 18,000 BTU/h for a big great room or a converted space south of the Boulevard with a high heat load from full-height windows.
All three use multi-directional vanes, run quietly, and deliver air low in the room. Pair any of them with a Hyper-Heat MUZ condenser and you get strong low-temperature heating plus the high cooling efficiency that actually matters in this neighborhood.
What fault codes do floor consoles throw?
An MFZ-KJ speaks the same P/E/U fault language as every other Mitsubishi head. Because it breathes at floor level, the airflow-related codes show up sooner if filters slip.
| Code | Meaning / component | Repair lane |
|---|---|---|
| P6 | Freezing protection - dust-clogged filter or coil (most common on consoles) | $89 - $450 |
| P4 / P5 | Drain float / drain pump at the console pan | $89 - $450 |
| P1 / P2 / P9 | Intake, liquid-pipe, or coil thermistor drift | $150 - $500 |
| E6 / E7 / EA | S1/S2/S3 inter-unit communication or wiring | $89 - $450 |
| U7 | Low discharge superheat - low charge, often a flare leak | $225 - $1,500 |
| U5 / U6 / U8 | Outdoor inverter heatsink, compressor, or fan motor | $400 - $3,500 |
How does a floor console install go in a Woodland Hills home?
A console mounts at the base of an exterior wall, so the line set and condensate drain route down and out near the floor rather than up into a ceiling - often simpler than a high wall head in a room with a beam or clerestory ceiling. On a mid-century ranch that usually means a short, clean penetration to a side-yard MUZ. On a hillside lot south of the Boulevard the line set can run long to reach a condenser on a lower terrace, which adds refrigerant and another flare joint to inspect over time. We confirm drain fall at floor level carefully, since a console has less height to work with than a ceiling-hung unit, and a flat drain is what produces P4 and P5 down the road. Where a room is being converted off old electric baseboard, the MFZ-KJ drops straight into the same low-wall footprint the baseboard occupied.
What does service look like on a floor unit?
The diagnostics are standard Mitsubishi: P-codes for the indoor coil thermistor and condensate path, E-codes for S1/S2/S3 communication, U-codes for the outdoor inverter and compressor. The one floor-specific habit is filters - because a console breathes at floor level, it collects more dust and pet hair, so clogged-airflow faults like P6 freezing show up faster if maintenance slips. We fold that into a maintenance plan. If a head is acting up now, start at AC repair; to control it from your phone, see kumo cloud.
Common questions
When is a floor-mount better than a wall head?
When wall and ceiling space is the problem. A low MFZ-KJ console sits at the base of a wall, so it fits under a picture window, in a room with vaulted ceilings or full-height glass, or where a wall head would look wrong over fine cabinetry in a south-of-the-Boulevard rebuild. It also drops warm air at floor level for better heating.
Are floor-mount consoles good for heating too?
Yes - that is part of the point. Because the MFZ-KJ delivers air low in the room, it is a strong electric replacement for old baseboard heaters and warms a space more evenly than a high wall head. Paired with a Hyper-Heat condenser it handles both seasons easily in Woodland Hills.
Can a floor console go on a multi-zone system?
Yes. MFZ-KJ heads run on single-zone MUZ condensers or as one zone on an MXZ / MXZ-SM multi-zone outdoor unit, so you can mix a floor console in a living room with wall heads in bedrooms on one system.
What maintenance does a floor unit need?
Same essentials as any Mitsubishi head: filter and coil cleaning, condensate drain checks, and a look at the flare joints and charge. Because consoles sit at floor level they pull in more dust and pet hair, so the filters want attention a little more often in this climate.
