Mitsubishi Ducted Mini-Split Air Handlers in Woodland Hills
Cut to it: Woodland Hills Mitsubishi HVAC services and installs Mitsubishi ducted mini-split air handlers across Woodland Hills 91367 and Walnut Acres. SVZ, MVZ, SEZ, and PEAD units let ranch homes keep existing ducts while gaining inverter efficiency, so call (213) 277-6575 or book a duct assessment online.
The rundown
- SVZ and MVZ multi-position air handlers replace a furnace-and-coil for whole-home ducted comfort.
- SEZ-KD low-static slim duct handles short ceiling or closet runs.
- PEAD-AA P-Series slim duct serves larger loads; newest models use R-454B.
- Variable-speed ECM blower plus inverter compressor for quiet, steady airflow.
- In Zone 9, Title-24 commonly forces duct sealing with HERS field verification when you alter ducts.
- Central ducted inverter install runs $5,000 - $14,000 depending on scope.
- Service area 91364, 91367, 91371; we inspect existing ducts before quoting.
- Independent; in-warranty parts referred to authorized service first.
Why ducted Mitsubishi for a Woodland Hills ranch?

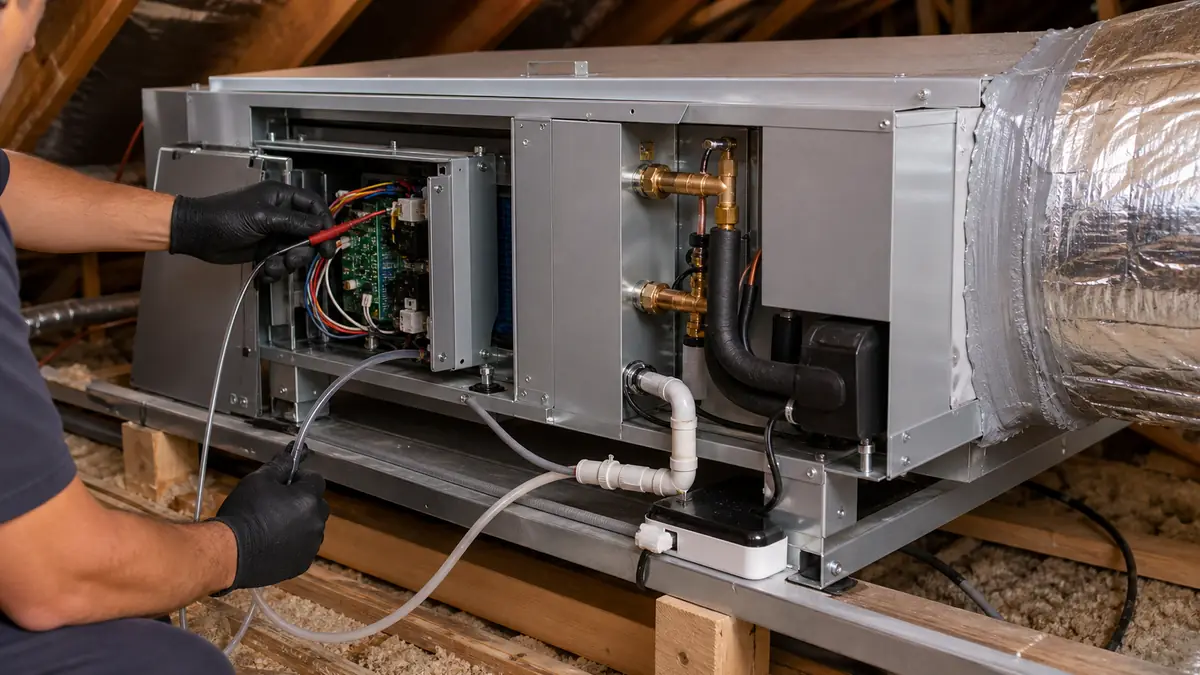

Plenty of homeowners assume Mitsubishi means wall-mounted heads everywhere. For a sprawling single-story ranch in Walnut Acres or Vista de Oro that already has ductwork, a concealed air handler is often the better answer. An SVZ or MVZ unit hides in a closet, attic, or mechanical space, connects to a Mitsubishi inverter condenser, and pushes conditioned air through your existing registers - no wall heads, no visible equipment in living spaces. You get the efficiency and quiet of inverter technology with the look of a conventional central system.
The catch is the ducts themselves. A lot of post-war Woodland Hills ductwork is undersized, leaky, or poorly insulated in a blazing attic, and that strangles any system you bolt to it. We gauge static pressure and leakage before anything else. Under Title-24 in Climate Zone 9, swapping out or substantially reworking ducts usually brings duct sealing with HERS field verification, alongside refrigerant-charge and airflow verification on the new equipment - we build that into the plan instead of being caught off guard by it.
Which ducted air handler fits the job?
| Application | Mitsubishi unit | Notes |
|---|---|---|
| Whole-home, replace furnace and coil | SVZ-KP / MVZ-A multi-position | Pairs to inverter condenser; full ducted comfort |
| Short run, a couple of rooms | SEZ-KD low-static slim duct | Hides in a ceiling cavity or closet |
| Large or light-commercial load | PEAD-AA + PVA air handler | P-Series capacity; newest uses R-454B |
| Mixed ducted plus a hot room | MXZ-SM driving ducted + a head | One outdoor unit, blended approach |
What are the ducted Mitsubishi models, line by line?
The ducted catalog is not one product but a family, each sized for a different job.
- SVZ-KP (e.g. SVZ-KP24NA) and MVZ-A (e.g. MVZ-A24AA7): multi-position air handlers that replace a furnace-and-coil entirely. They sit in a closet, attic, or mechanical space, pair to a Mitsubishi inverter condenser, and push conditioned air through your existing trunk and registers. This is the whole-home ducted answer for a Walnut Acres or Vista de Oro ranch.
- SEZ-KD (e.g. SEZ-KD12NA4): a low-static slim concealed unit for short runs - a ceiling cavity feeding a couple of rooms, or a closet serving one wing. Lower capacity, far less duct depth required.
- PEAD-AA (e.g. PEAD-AA24NL) with a PUZ outdoor unit: the P-Series slim-duct equivalent for larger or light-commercial loads, common in bigger hillside rebuilds. The newest single-zone ducted P-Series uses R-454B refrigerant rather than the legacy R-410A.
- PVA-A (PVA-A24/A36/A42AA7): P-Series multi-position air handlers for high-capacity whole-home ducted comfort where an SVZ runs short on tonnage.
- MXZ-SM driving a ducted handler plus a head: one outdoor unit serving the existing ducts for the main house and a single wall head for an addition or hot room - a blended approach that avoids a second condenser.
What fault codes show up on a ducted Mitsubishi?
The P/E/U code language is shared across the catalog; the ducted units simply add the ECM blower to the fault set. These are the ones we read most often on concealed handlers.
| Code | Meaning / component | Repair lane |
|---|---|---|
| P4 / P5 | Drain float / drain pump on the indoor coil pan | $89 - $450 |
| P6 | Freezing protection - dirty filter or coil choking airflow | $89 - $450 |
| P1 / P2 / P9 | Intake, liquid-pipe, or coil thermistor drift | $150 - $500 |
| E6 / E7 / EA / EB | S1/S2/S3 inter-unit communication or wiring | $89 - $450 |
| U5 / U6 / U8 | Inverter heatsink, compressor overcurrent, outdoor fan | $400 - $3,500 |
| U7 | Low discharge superheat - low charge, often a flare leak | $225 - $1,500 |
| Normal call, no air | Variable-speed ECM blower module or motor | $450 - $2,300 |
Ducted handler or wall heads - which is right for your home?
Both are Mitsubishi inverter systems; the choice is about ducts and aesthetics, not efficiency tiers. A ducted SVZ/MVZ wins when you already have usable ductwork and want a conventional look with no visible equipment - the typical sprawling single-story ranch. Wall heads win when ducts are absent, badly undersized, or buried in a finished slab, or when you only need to condition one or two rooms. A blended MXZ-SM splits the difference for a house that is mostly ducted with one stubborn hot room.
The honest tradeoff: a ducted handler reuses your registers but inherits any duct sins - leakage, undersizing, attic heat gain - so it is only as good as the ductwork behind it. Wall heads sidestep ducts entirely but put equipment on the wall. We gauge static pressure and leakage before we steer you either way, because a beautiful inverter handler bolted to a leaky 1960s duct system underperforms a cheaper wall head every time.
What breaks on a ducted inverter system?
The fault set overlaps with ductless but adds the blower. A variable-speed ECM blower module or motor can fail and leave you with a normal-looking call and no air - we diagnose the ECM directly, and replacement runs $450 to $2,300. Drain faults (P4 float, P5 pump) still apply to the indoor coil pan. Communication issues across S1/S2/S3 throw E-codes. And the outdoor inverter still flags U-codes for compressor and board problems. Because a ducted system serves the whole house, we treat a no-air call as urgent in summer - see emergency service.
Deciding between repairing an old central system and converting to a ducted inverter? The repair-or-replace guide and the Manual J sizing guide walk through it, and the Hyper-Heat page covers the heat-pump version.
Common questions
Can I keep my existing ducts with a Mitsubishi system?
Frequently, yes. An SVZ or MVZ multi-position air handler ties a Mitsubishi inverter condenser to your existing duct trunk, letting a Walnut Acres ranch keep its registers while gaining inverter efficiency. We look the ductwork over first - undersized or leaky post-war returns may need sealing both to clear Title-24 HERS verification and to move the airflow you actually need.
What is the difference between SVZ, MVZ, and SEZ?
SVZ and MVZ are multi-position whole-home air handlers that replace a traditional furnace-and-coil for ducted comfort. SEZ-KD is a low-static slim concealed unit for short runs - think a ceiling cavity feeding a couple of rooms. PEAD-AA is the P-Series slim-duct equivalent for larger or light-commercial loads, and the newest ones use R-454B refrigerant.
Will a ducted inverter system be quieter than my old AC?
Yes. A variable-speed ECM blower and an inverter compressor ramp up and down instead of cycling at full blast, so you get steadier temperatures and far less of the on-off roar an old single-stage condenser makes on a hot Woodland Hills afternoon.
How do you diagnose a ducted air handler?
The same fault language applies - P-codes for indoor sensors and drain, E-codes for communication, U-codes for the outdoor and inverter. A ducted ECM blower that quits while the call looks normal gets diagnosed at the motor and module directly; replacement runs $450 to $2,300 depending on the part.
